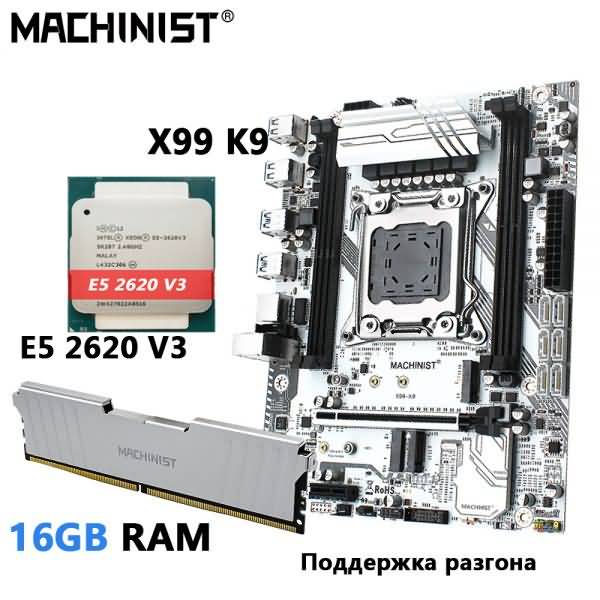

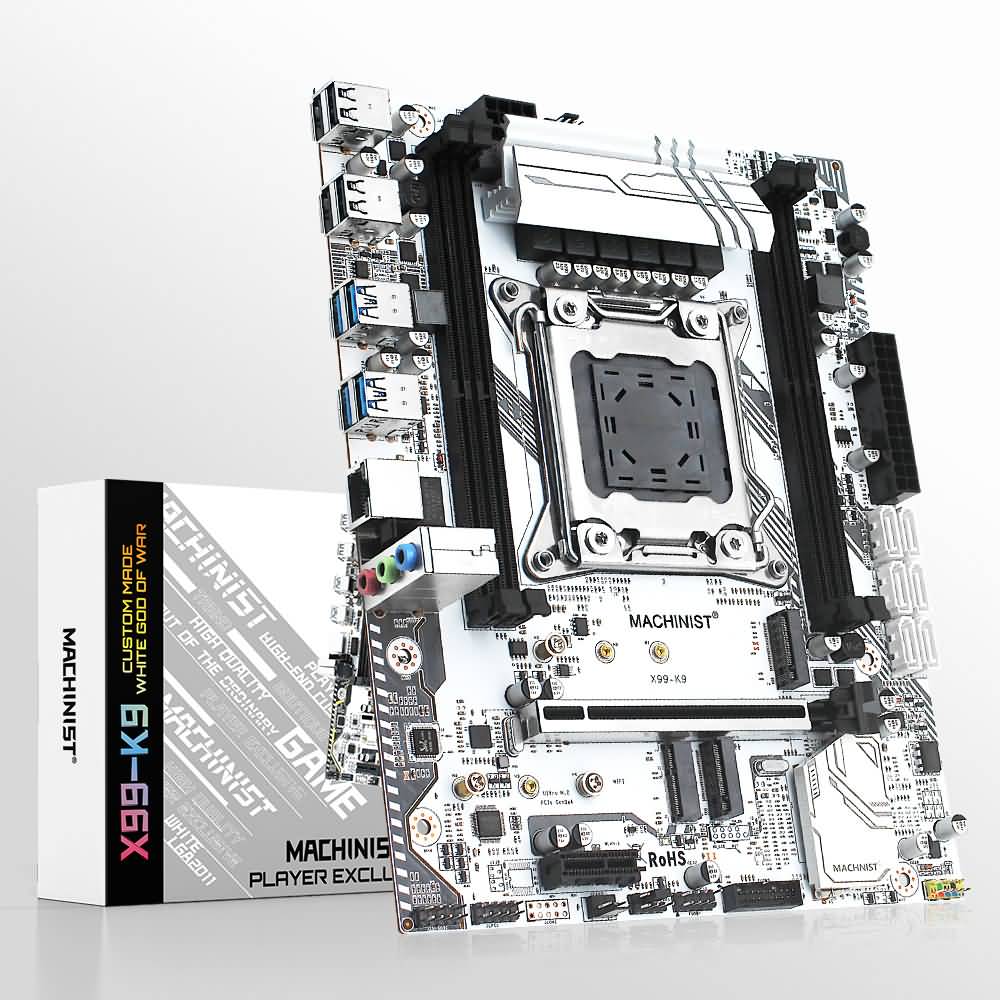

Machinist X99 K9 Motherboard Set Kit With Intel Xeon E5 2620 V3 CPU and 16GB DDR4 RAM


Buy product



If you need more memory, please click the picture above to buy

This motherboard can be overclocked, quad-channel memory

>> What's in the package?

Main products: MACHINIST X99 K9 motherboard*1; E5 2620 V3 CPU*1; 16GB 2133MHZ DDR4 RAM*1;

Gift accessories: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there may be omissions, please forgive me!);

MACHINIST Product Details

Brand: MACHINIST /span>

Condition: Brand New

CPU socket: LGA 2011-3

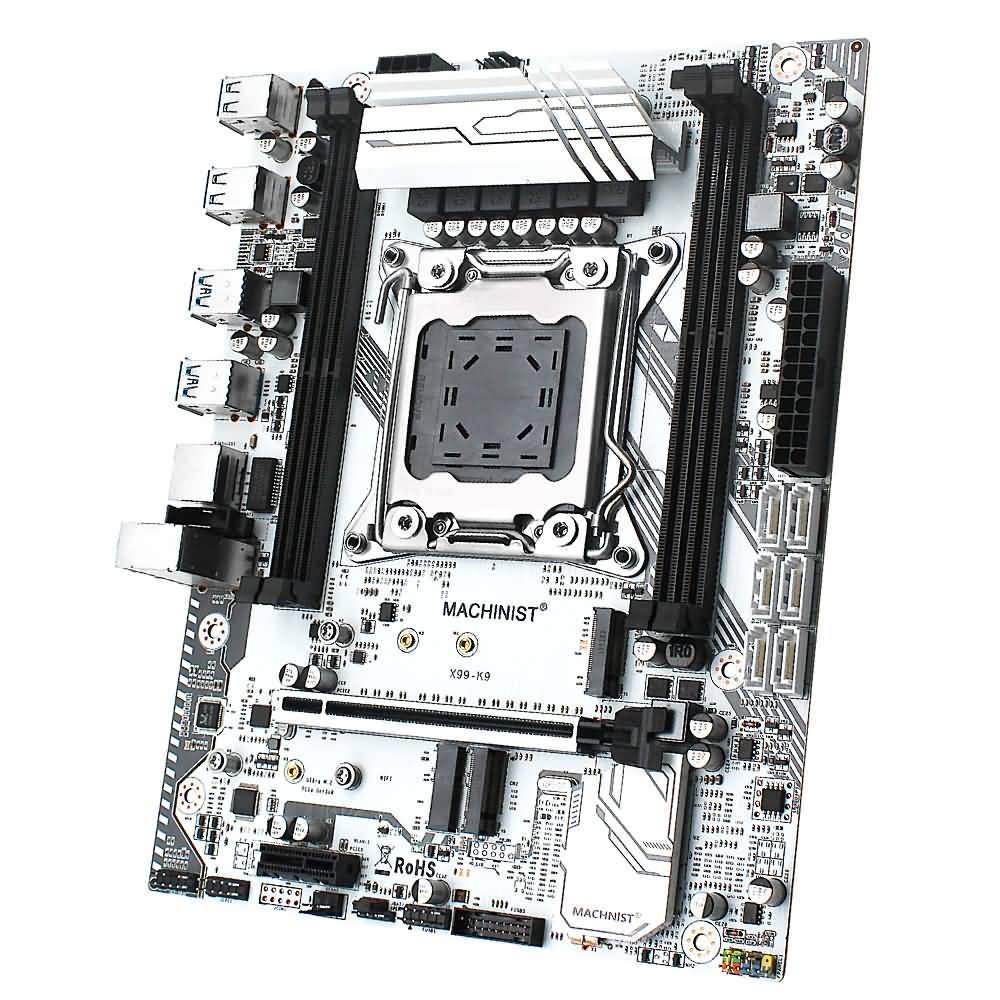

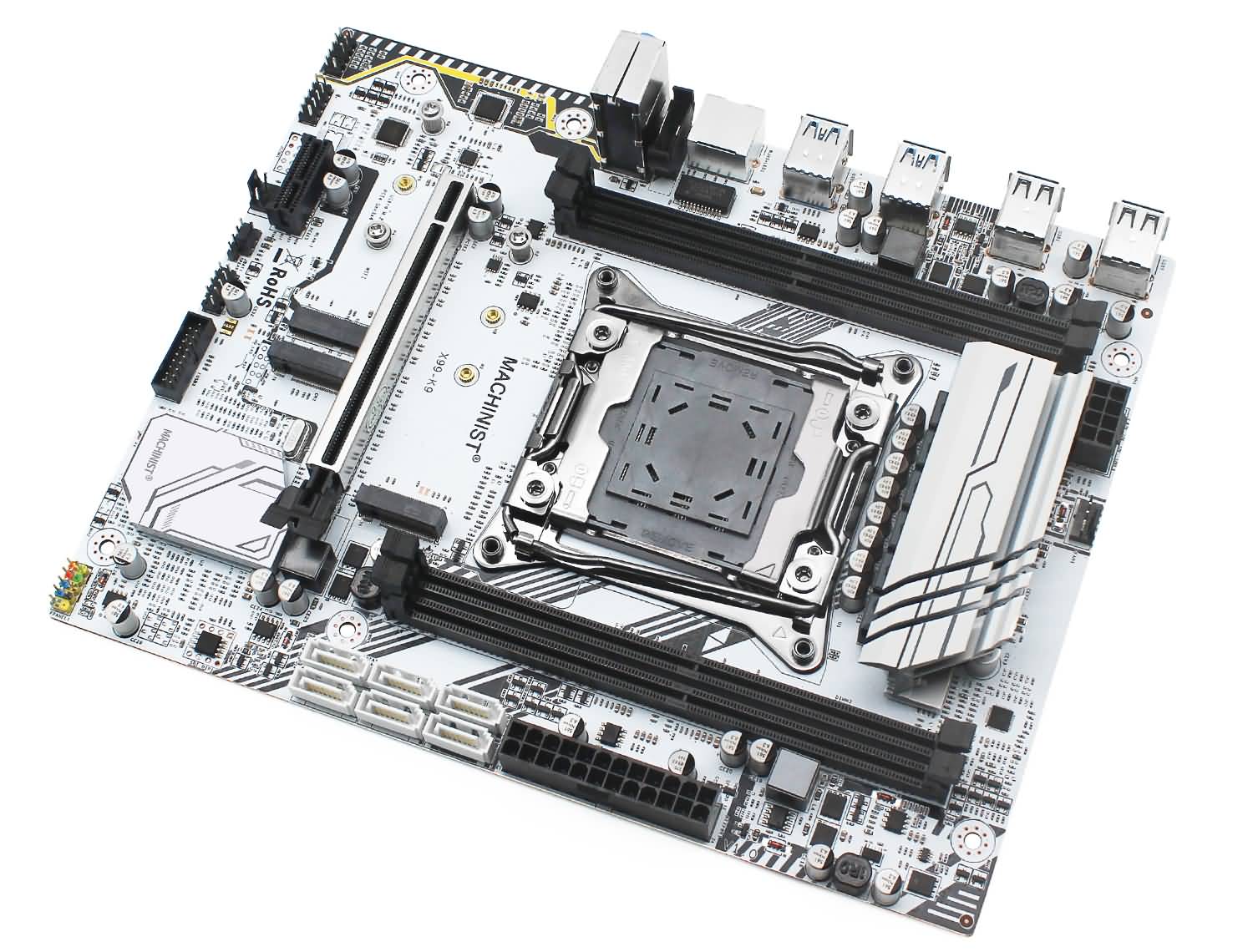

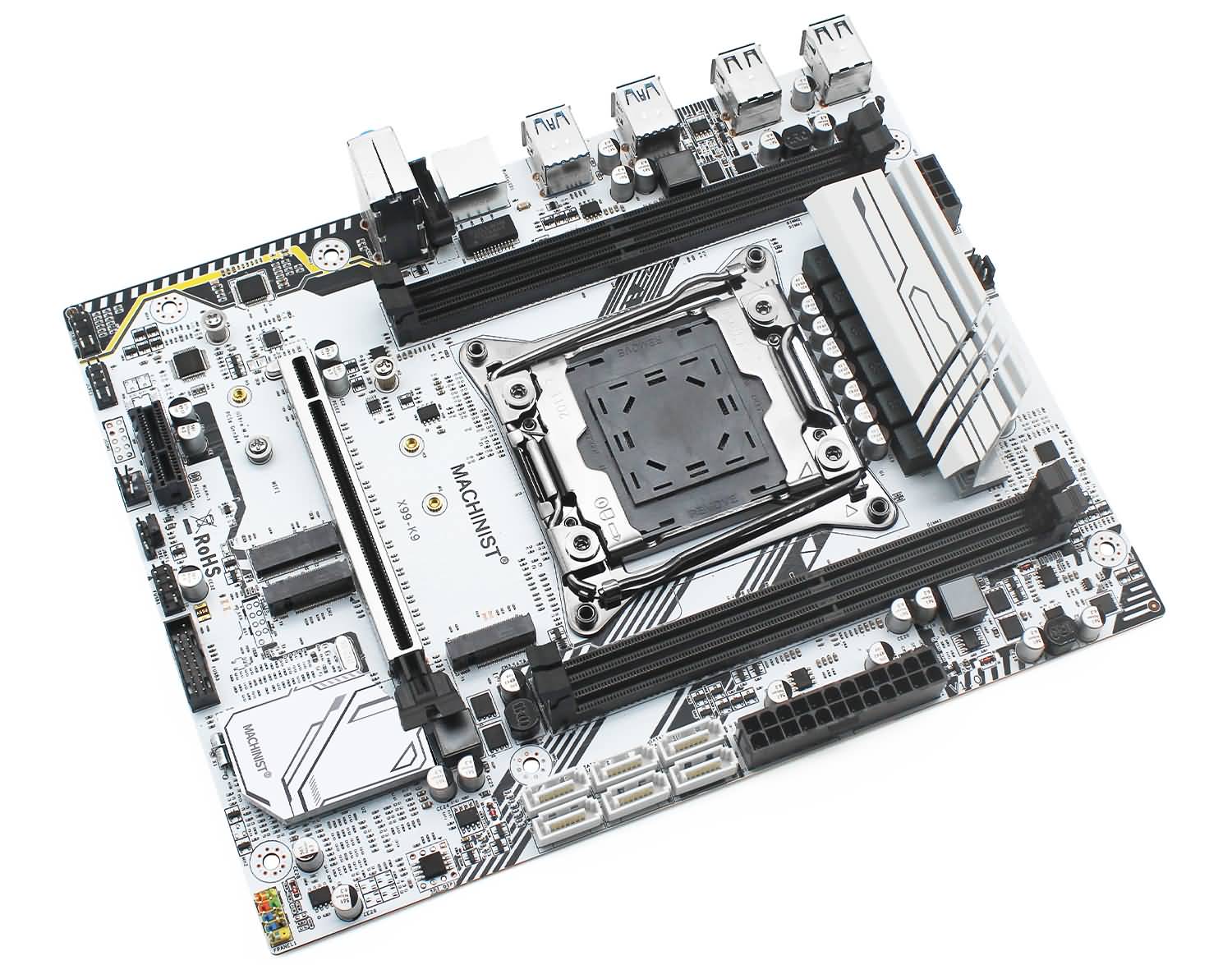

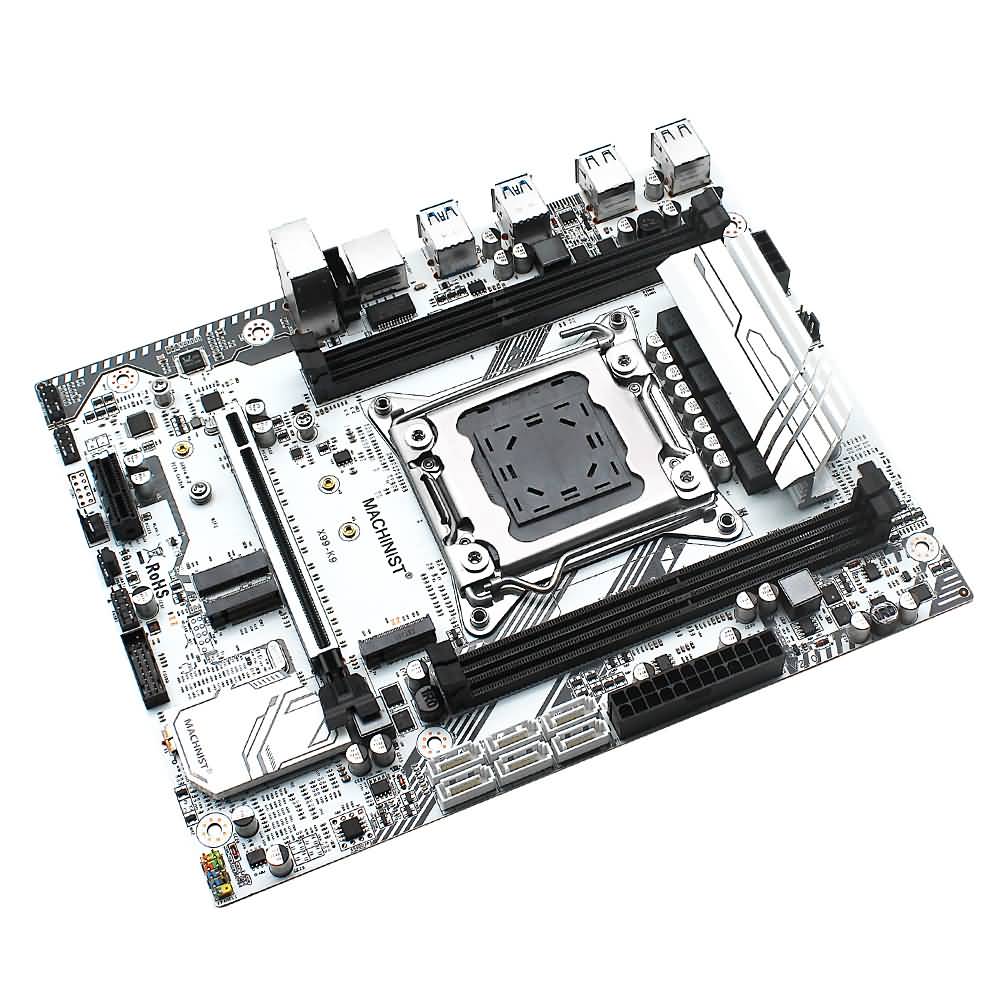

Motherboard model: X99 K9

Structure: M-ATX

Chipset:Inte X99

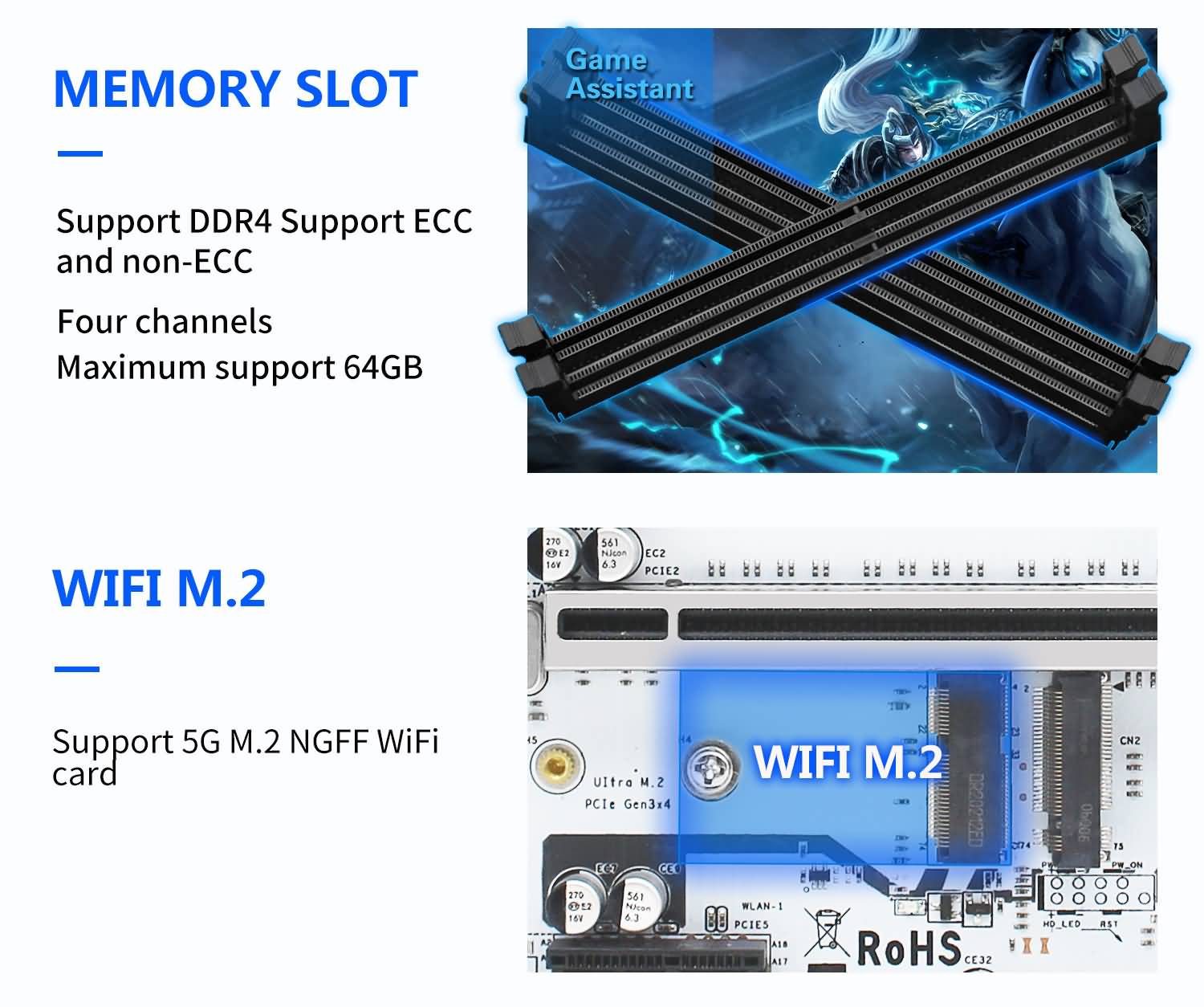

Memory slot: 4*DDR4 (four memory channels)

Maximum memory supported: 4*16GB DDR4

Supported memory types: The memory types support DDR4 desktop and server memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix and other international brands, other brands are incompatible)

LAN port: 10/100/1000Mbps/s

Video output port: requires graphics card support

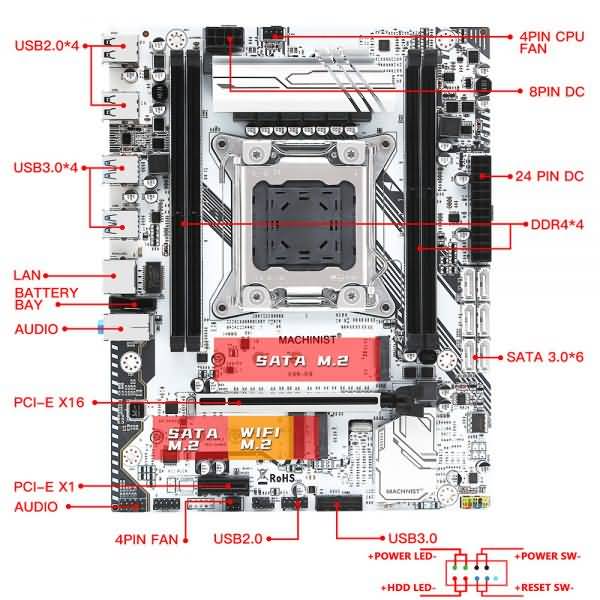

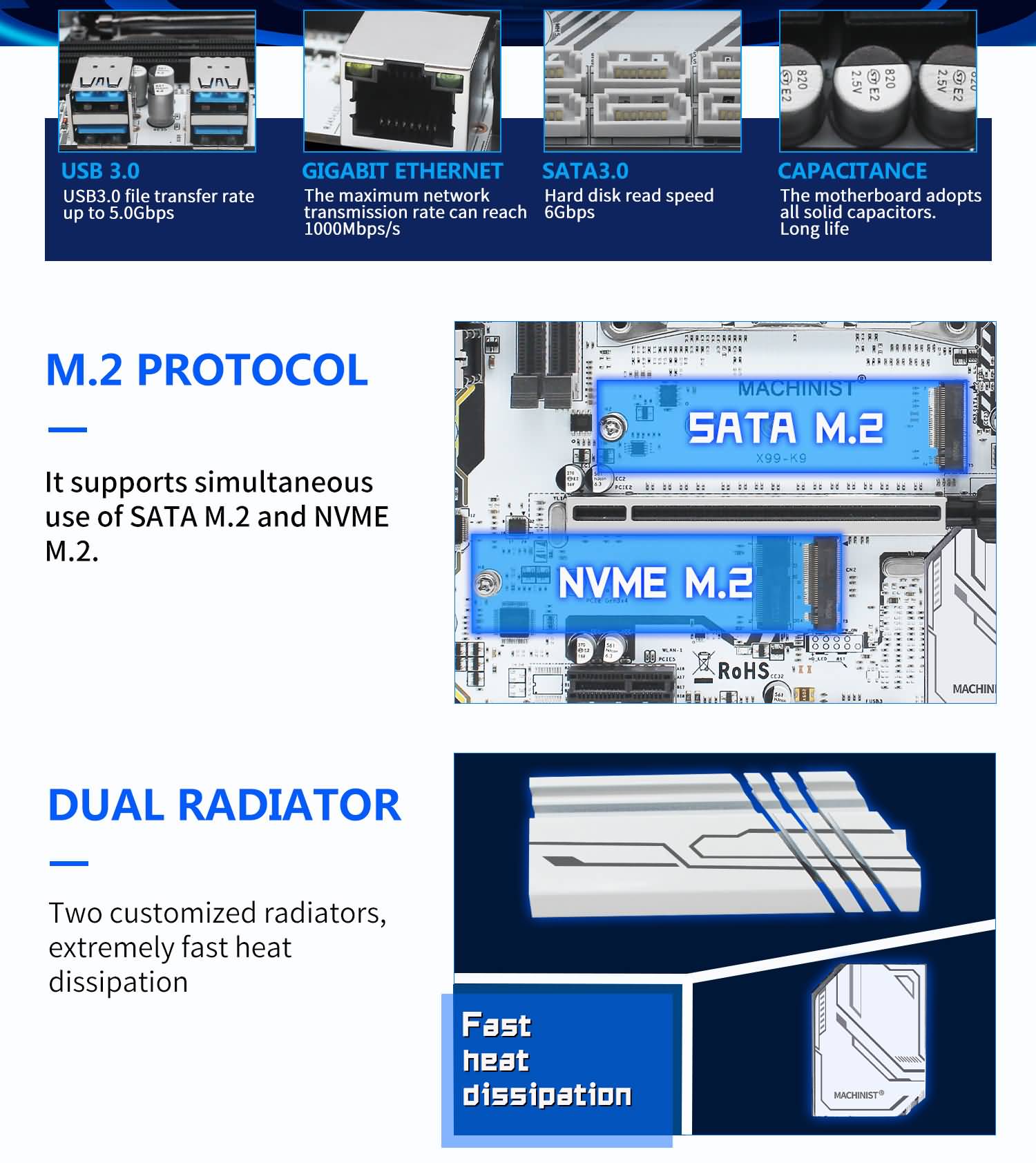

Interface: 1*RJ45/1*PS2/4*SATA3.0/6*USB2.0/2*USB3.0/1*PCI-E x16/1*PCI-E x1/1*NVME M.2 interface/ 1*NGFF M.2 interface/1*NGFF M.2 wifi interface;

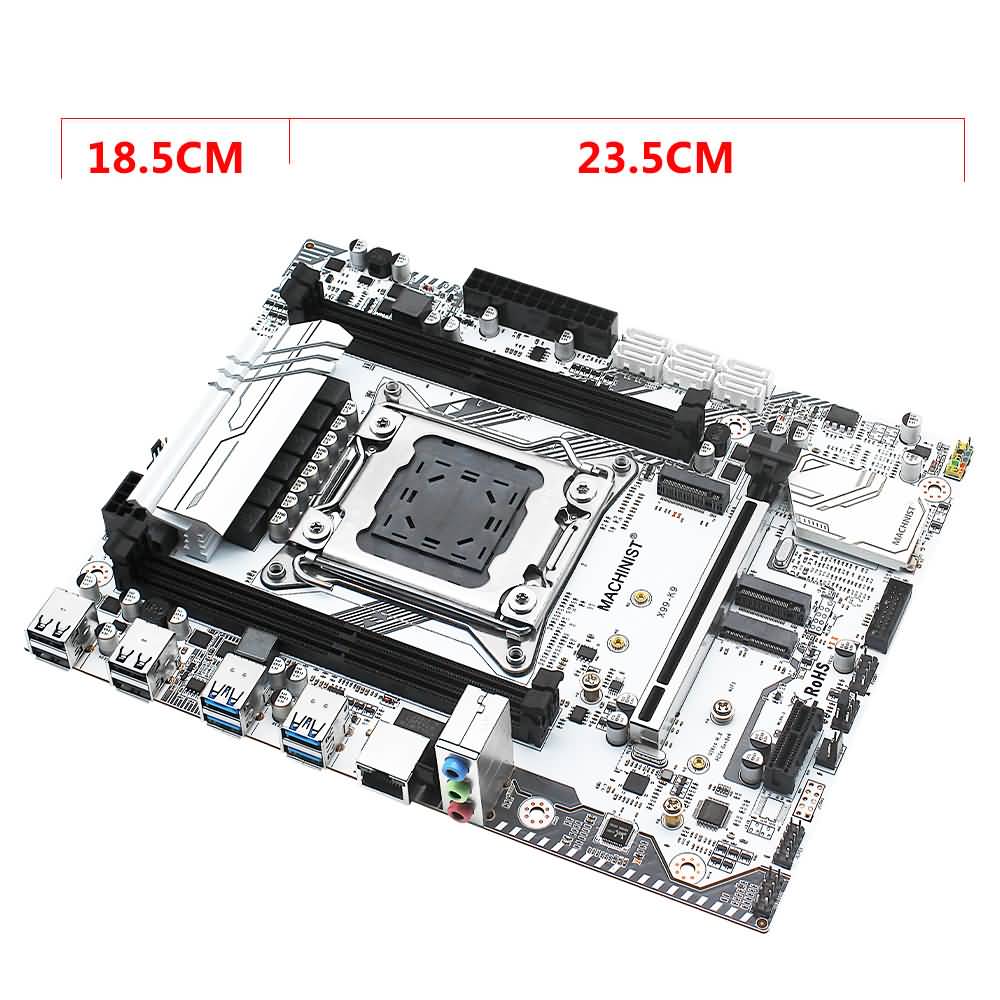

Motherboard size: 235*185mm

Motherboard weight (including packaging): about 0.9kg.


(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.

(2) Please allow 1-3mm differs due to manual measurement.

(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)

(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

》》For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.

MACHINIST Official Store Statement

1: What is the motherboard version?
The motherboard version is not always the same because the production factory updates it from time to time, so the motherboard version will vary from one production batch to another.
The MACHINIST official store will generally ship the latest version, please refer to the actual product, we will not notify you any further.
2: Why is there no image display on the monitor?
Please check whether the motherboard speaker is beeping. If there is beeping, it must be a problem with the graphics card or monitor. If the speaker is not beeping, please check whether the CPU cooler is turned on, and whether the LAN port light is on or off? If it spins up and the LAN port light is on, it's still a graphics card or monitor problem, but if the LAN port light isn't on, wipe all memory sticks with an eraser, then install only one memory stick slot in any one, boot the computer .
3: Does the motherboard support overclocking? Do they support SLI and Crossfire?
Speaking responsibly, MACHINIST store does not recommend overclocking, it may damage the hardware, so of course we do not test overclocking, and we do not have a BIOS version that supports overclocking. But there are buyers who say that they overclocked our motherboard after flashing the BIOS and it worked.
4: Why does the motherboard temperature sensor sometimes work abnormally?
Yes, sometimes the motherboard temperature is not normal, so the temperature information of the motherboard and CPU is wrong, but in fact the motherboard and CPU are not that hot, otherwise your computer will automatically shut down or burn out. MACHINIST technicians are still working on it.
5: Does the buyer need to send back the product if the buyer does not work or stops working?
The MACHINIST store does offer a 100% genuine warranty and we reserve the right to decide if the buyer needs to send the product back to us. But that doesn't mean our products are unreliable, in fact we state it above. We rigorously test all our products without any doubt before shipping, so most buyers are satisfied with our products and some of them have become our regular customers. Also, based on our previous experience, many of our products work fine after being sent back by buyers, but have no effect when buyers try them out, which is weird. (A faulty accessory can also cause the motherboard to not boot.)
>> If our product does not work from the moment the buyer receives the product or stops working within half a year of the buyer placing the order, the answer is 100% yes. Especially when buyers just got them and started testing them.
MACHINIST store reserves the right to require buyers to return for exchange or refund.
